| Pevný stůl |
| Rozměry stolu /opce/ |
2.000 x 820/1.000/ mm |
2.300(2.600) x 820/1.000/ mm |
2.800(2.720) x 820/1.000/ mm |
3.700(3.650) x 820/1.000/ mm |
4.300 x 820/1.000/ mm |
5.300 x 820/1.000/ mm |
6.300 x 820/1.000/ mm |
| Max. zatížení stolu |
3000(3200) Kg |
3450(3200) Kg |
4200(3600) Kg |
5500(4800) Kg |
6500(6000) Kg |
8000(7500) Kg |
9500(9000) Kg |
| Rozjezd os |
| Osa X |
1600 mm |
2000 mm |
2500 mm |
3300 mm |
4000 mm |
5000 mm |
6000 mm |
| Osa Y |
1200 mm |
1200 mm |
1200 mm |
1200 mm |
1200 mm |
1200 mm |
1200 mm |
| Osa Z |
1200 mm |
1200 mm |
1200 mm |
1200 mm |
1200 mm |
1200 mm |
1200 mm |
| Rozjezd, tandem provedení |
- |
685 x 2 |
935(940) x 2 |
1.335 x 2 |
1.685 x 2 |
2.185 x 2 |
2.675(2.685) x 2 |
| Rychloposuv X-Y-Z |
50 - 50 - 50 m/min |
50 - 50 - 50 m/min |
50 - 50 - 50 m/min |
50 - 50 - 50 m/min |
50 - 50 - 50 m/min |
40 - 50 - 50 m/min |
40 - 50 - 50 m/min |
| Vřeteno |
| Otáčky |
10000(15000) rpm |
10000(15000) rpm |
10000(15000) rpm |
10000(15000) rpm |
10000(15000) rpm |
10000(15000) rpm |
10000(15000) rpm |
| Výkon |
22(24) Kw |
22(24) Kw |
22(24) Kw |
22(24) Kw |
22(24) Kw |
22(24) Kw |
22(24) Kw |
| Kroutící moment |
141(142) Nm |
141(142) Nm |
141(142) Nm |
141(142) Nm |
141(142) Nm |
141(142) Nm |
141(142) Nm |
| Opce vřetena |
8.000 / 12.000 / 15.000 / 20.000 / 24.000 rpm |
8.000 / 12.000 / 15.000 / 20.000 / 24.000 rpm |
8.000 / 12.000 / 15.000 / 20.000 / 24.000 rpm |
8.000 / 12.000 / 15.000 / 20.000 / 24.000 rpm |
8.000 / 12.000 / 15.000 / 20.000 / 24.000 rpm |
8.000 / 12.000 / 15.000 / 20.000 / 24.000 rpm |
8.000 / 12.000 / 15.000 / 20.000 / 24.000 rpm |
| Zásobník nástrojů |
| Počet nástrojů |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
| Max. počet nástrojů |
150 |
150 |
150 |
150 |
150 |
150 |
150 |

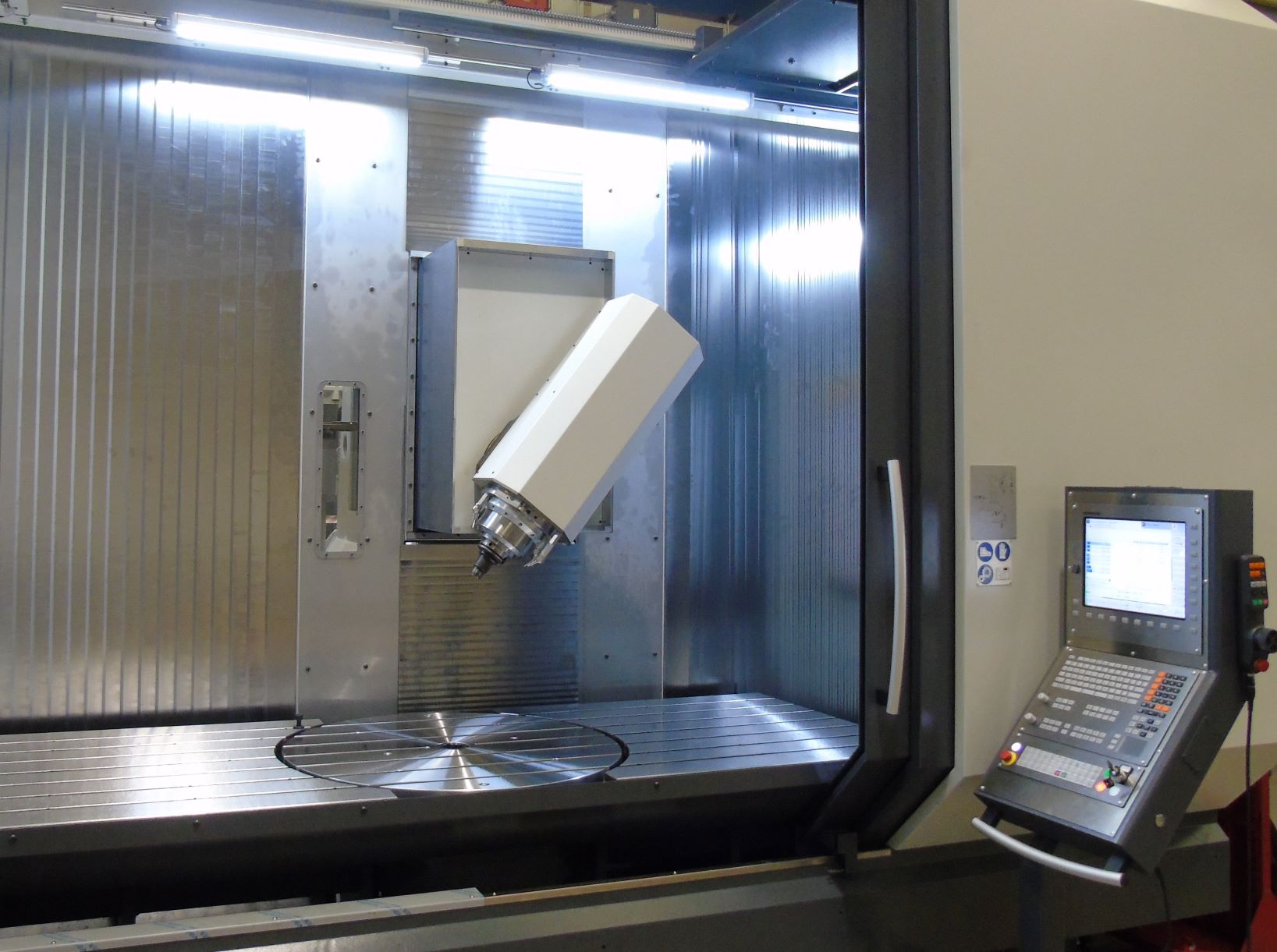

| Swivelling head (pouze LBT5) |
| B-axis head travel |
+/- 105° degrees |
+/- 105° degrees |
+/- 105° degrees |
+/- 105° degrees |
+/- 105° degrees |
+/- 105° degrees |
+/- 105° degrees |
| B-axis minimum angular indexing |
0,001 degrees |
0,001 degrees |
0,001 degrees |
0,001 degrees |
0,001 degrees |
0,001 degrees |
0,001 degrees |
| Integrated rotary table (pouze LBT5) |
| Table diameter |
800 (1.000) mm |
800 (1.000) mm |
800 (1.000) mm |
800 (1.000) mm |
800 (1.000) mm |
800 (1.000) mm |
800 (1.000) mm |
| Maximum table load |
2500 Kg |
2500 Kg |
2500 Kg |
2500 Kg |
2500 Kg |
2500 Kg |
2500 Kg |
| C-axis rapid travel |
80 rounds/min |
80 rounds/min |
80 rounds/min |
80 rounds/min |
80 rounds/min |
80 rounds/min |
80 rounds/min |
| CNC řízení |
| Fanuc 31i-B (Fanuc 31i-MB5) |
|
|
|
|
|
|
|
| Heidenhain iTNC 640 |
|
|
|
|
|
|
|
| Siemens Sinumerik 840D SL |
|
|
|
|
|
|
|
| Kužel vřetena |
| ISO 40 / HSK 63 / ISO 50 / HSK 100 |
|
|
|
|
|
|
|
